Flanges

We supply high quality flanges to ANY specification, QUICKLY and to ANYWHERE in the world.

Standard type Flanges:

  • Weld-neck
  • Blind
  • Slip-on
  • Lap-joint
  • Screwed
Standard facings:

  • Raised face
  • Ring-type joint
  • Flat face
  • Male/female
  • Tongue/groove
Standard ratings:

  • 150LB
  • 300LB
  • 600LB
  • 900LB
  • 1500LB
  • 2500LB
Standard grades:

  • ASTM A105
  • A350 LF2
  • BS1503-221
  • BS1503-224
  • LT50
Standard dimensions:

  • ANSI B16.5
  • BS1560
  • BS4504
  • D.I.N.
  • A.F.N.O.R.
  • J.I.C.

Non-standard types:

  • Long weld neck
  • Orifice
  • Spade
  • Spacer
  • Spectacle
  • Swivel-ring
  • Cross-over
  • Adaptor
Non-standard dimensions:

  • BS3293
  • API 605
  • MSS SP44
  • API 6A
  • BS10
  • BS4504
Non-standard ratings:

  • 6-420 Bar (DIN) 5000
    -20000 PSI (A.P.I.)

Cladding:


  • All flanges can be supplied with grooves, back faces, bevels and bores inlaid with a variety of alloys. This is carried out to approved procedures by qualified welders and, as usual full certification is available. All levels of NDT can be accommodated

Specials:

  • To customer drawings


Sizes:

  • ΒΌ" NB to 72"NB & 6MM to 1800MM NB


Specialties:

  • Modified specifications (Analysis restrictions,  extra testing, inspection,  heat treatment)
  • High pressures
  • Heavy wall thickness

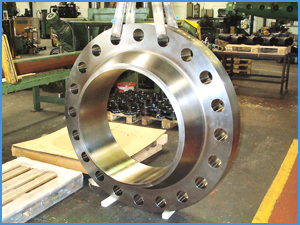

flanges, full colour image
